Inert Gas IG55 Fire Suppression Systems Are Safe For People And Sensitive Equipment
Description:
When a fire is detected, the IG55 system releases the inert gas mixture into the protected space. The gases quickly disperse, reducing the oxygen concentration to a level where the fire cannot sustain itself. The process is fast, efficient, and leaves no residue, ensuring minimal downtime and no secondary damage.
The IG55 fire extinguishing system is a reliable, sustainable, and effective solution for protecting critical infrastructure and assets from fire hazards. Its unique properties make it a preferred choice for industries where safety, environmental impact, and asset protection are paramount.
Technical parameters of IG55 fire suppression system
| Working temperature (℃) | 0℃～+50℃ |
| Working pressure | Storage pressure | 20.0MPa | 30.0MPa |
| Max. working pressure (+50℃) | 23.2MPa | 36.6MPa |
| Min. working pressure (-20℃) | 18MPa | 27MPa |
| Container volume (L) | 80L | 140L |
| Filling weight (kg, @200 bar) | 22.32kg | 39.06kg |
| Filling weight (kg, @300 bar) | 33.48 kg | 58.59kg |
| System operating voltage | 220V AC,24V DC |
| System start mode | Electrical automatic, electrical manual, mechanical emergency start |
| Design concentration | Class A dangerous material surface fire | 40.3% |
| Class B | 47.6% |
| The design concentration of the protective zone with people working | 40.3%～43% |

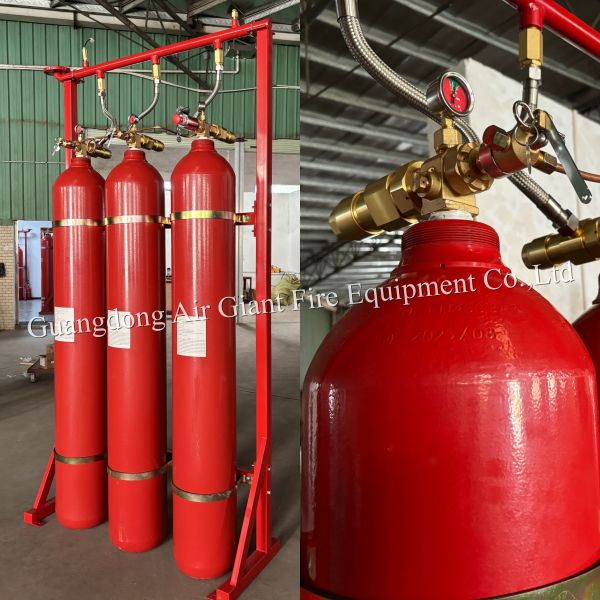

Components:
| 1 | Agent storage cylinder | 5 | Container valve | 9 | Manifold | 13 | Container valve for driving cylinder | 17 | Select valve |
| 2 | Frame | 6 | Flexible hose | 10 | Reducing devise | 14 | Solenoid actuator | 18 | Pressure switch |
| 3 | Cylinder clamp | 7 | Safety valve | 11 | Pilot tube | 15 | Relief valve | 19 | Nozzle |
| 4 | Gas driving actuator | 8 | Liquid flow check valve | 12 | Driving cylinder | 16 | Gas flow check valve | |
|
Features:
Safe and Environmentally Friendly Fire Suppression Solution
IG55 fire suppression system is electrically non-conductive, making it suitable for applications in crowded spaces where electrical hazards are a concern. In addition, it is chemically inert, meaning it will not react with any substances and cause harm.
Furthermore, our fire suppression system is colourless, odourless, and flavourless, ensuring that it will not affect the taste or smell of any products in the protected area. And with no residue left behind after discharge, there is no need for clean-up, making it convenient and hassle-free.
But the benefits don't end there. Our product also has no Ozone Depletion Potential (ODP) and does not contribute to the greenhouse effect or global warming. It produces no decomposition products and does not create fog or reduce visibility after discharge. Plus, it is non-corrosive and non-toxic, ensuring the safety of people and the environment.
In addition, our fire suppression system is stored as a gas, making it easy to store and transport. And with excellent post-discharge visibility and a very low refill cost, it is a cost-effective solution that is easily obtainable anywhere in the world.
Applications:
• Computer room, communication room, power distribution room, library, archives,
Museum, etc.
• Be used for electrical fire, liquid fire, solid fire, gas fire which can be cut off the gas
source before extinguishing occur, etc.
Packing and Shipping:
We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
